HARKEN 79 mm dörtgen mapa

%3 indirim
1.415,57 TL
1.373,11 TL
* 184,39 TL x 9 ay’a varan Taksit seçenekleri
% 3 havale indirimi
Stok Kodu
dp_HA688
1-2 iş günü içerisinde kargoya verilir.
Stok Sorunuz

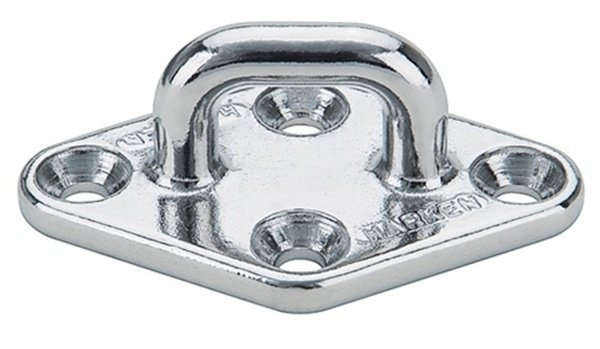

Harken 79 mm paslanmaz dörtgen mapa
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.

A (mm)79 mm
A (in)3 1/8 in
B (mm)51 mm
B (in)2 in
C (mm)60 mm
C (in)2 3/8 in
D (mm)32 mm
D (in)1 1/4 in
E (mm)30 mm
E (in)1 3/16 in
F (mm)14 mm
F (in)9/16 in
G (mm)22 mm
G (in)7/8 in
Weight (g)135 g
Weight (oz)4.75 oz
Maximum Working Load - angle 1 (kg)1770 kg
Maximum Working Load - angle 1 (lb)3800 lb
Maximum Working Load - angle 2 (kg)2270 kg
Maximum Working Load - angle 2 (lb)5000 lb
Maximum Working Load - angle 3 (kg)1950 kg
Maximum Working Load - angle 3 (lb)4300 lb
Breaking load - angle 1 (kg)3540 kg
Breaking load - angle 1 (lb)7800 lb
Breaking load - angle 2 (kg)4535 kg
Breaking load - angle 2 (lb)10000 lb
Breaking load - angle 3 (kg)3900 kg
Breaking load - angle 3 (lb)8600 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
